New Package arscript-mode
As an avid ArtRage user for almost 10 years I have in the past delved into the subtle art of editing arscript files:
ArtRage arscript files are specialized script files used by the ArtRage painting software to automate and record various painting actions and effects. These files encapsulate sequences of drawing commands, tool selections, color settings, and other actions that can be replayed to recreate the painting process. The arscript format includes structured elements such as keywords, modifiers, structured tags, and numerical values, allowing for detailed specification of both high-level actions and granular details like brush strokes and layer manipulations. The format aims to facilitate complex artistic workflows by enabling repeatable and shareable painting routines, making it an essential tool for digital artists using ArtRage.
They are designed to me modifiable, so what better way to modify them than with Emacs!
I created an arscript major mode with the idea to eventually add text manipulation functions to tweak a painting playback.
Summary
arscript-mode is an Emacs major mode designed to facilitate the editing of arscript files, providing syntax highlighting and other useful editing features tailored specifically for the arscript file format.

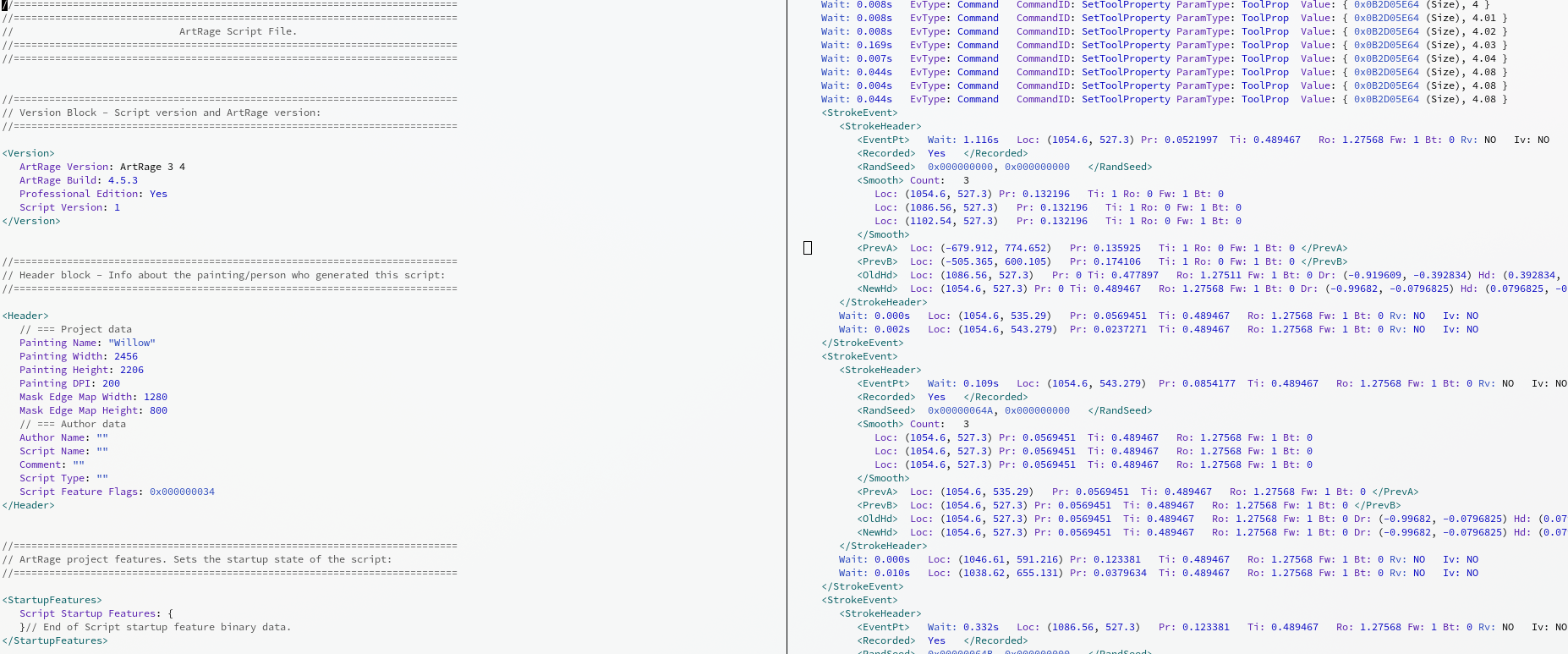

Screenshot
Links
https://www.artrage.com/manuals/scripts/
https://www.artrage.com/manuals/scripts/script-editing-tips/artrage-scripting-guide/
Whats New
v0.1.0
First version
Features
- Syntax highlighting for arscript-specific keywords, modifiers, and structures.
- Custom indentation logic for arscript code blocks.
- Auto-detection of .arscript files to automatically enable the mode.
Installation
use-package (MELPA)
(use-package arscript-mode)
use-package (emacs 30+) directly from github
Put the following into your emacs init file:
(use-package arscript-mode
:vc (:fetcher github :repo "captainflasmr/arscript-mode"))
From source
Download the `.el` file and place it in your Emacs `load-path` or in a specific source directory “~/source/repos/arscript-mode”
Then either manually load it or add it to your configuration to be loaded at startup.
(require 'arscript-mode)
OR
(use-package arscript-mode
:load-path "~/source/repos/arscript-mode")
Usage
Opening any .arscript file with Emacs should automatically enable arscript-mode, providing you with syntax highlighting and indentation support for editing arscript files.
Example arscript file:
//===========================================================================
//===========================================================================
// ArtRage Script File.
//===========================================================================
//===========================================================================
//===========================================================================
// Version Block - Script version and ArtRage version:
//===========================================================================
<Version>
ArtRage Version: ArtRage 3 4
ArtRage Build: 4.5.3
Professional Edition: Yes
Script Version: 1
</Version>
//===========================================================================
// Header block - Info about the painting/person who generated this script:
//===========================================================================
<Header>
// === Project data
Painting Name: "Willow"
Painting Width: 2456
Painting Height: 2206
Painting DPI: 200
Mask Edge Map Width: 1280
Mask Edge Map Height: 800
// === Author data
Author Name: ""
Script Name: ""
Comment: ""
Script Type: ""
Script Feature Flags: 0x000000034
</Header>
//===========================================================================
// ArtRage project features. Sets the startup state of the script:
//===========================================================================
<StartupFeatures>
Script Startup Features: {
}// End of Script startup feature binary data.
</StartupFeatures>
//===========================================================================
// Script data follows:
//===========================================================================
<Events>
Wait: 0.000s EvType: Command CommandID: CID_SetClearCanvas ParamType: flag Value: { true }
Wait: 14.031s EvType: Command CommandID: LoadReferenceImage Idx: 0 Reference Image: {
}// End of reference image binary data.
Wait: 2.694s EvType: Command CommandID: ReferenceImageXForm Idx: 0 Loc: (0.182031, 0.2) Size: (320, 236) Scale: 1 Rot: 0 Off: (0, 0)
Wait: 0.682s EvType: Command CommandID: ReferenceImageXForm Idx: 0 Loc: (0.179688, 0.45) Size: (320, 236) Scale: 1 Rot: 0 Off: (0, 0)
Wait: 2.298s EvType: Command CommandID: ReferenceImageXForm Idx: 0 Loc: (0.180078, 0.45) Size: (803, 600) Scale: 1 Rot: 0 Off: (0, 0)
Wait: 2.678s EvType: Command CommandID: ReferenceImageXForm Idx: 0 Loc: (0.279297, 0.395) Size: (803, 600) Scale: 1 Rot: 0 Off: (0, 0)
Wait: 7.316s EvType: Command CommandID: ReferenceImageXForm Idx: 0 Loc: (0.278906, 0.395) Size: (864, 646) Scale: 1 Rot: 0 Off: (0, 0)
Wait: 12.245s EvType: Command CommandID: ReferenceImageXForm Idx: 0 Loc: (0.278906, 0.395) Size: (139, 100) Scale: 1 Rot: 0 Off: (0, 0)
Wait: 0.000s EvType: Command CommandID: SetForeColour ParamType: Pixel Value: { 0x0FF7386A0 }
Wait: 3.341s EvType: Command CommandID: CID_SetClearCanvas ParamType: flag Value: { true }
Wait: 3.819s EvType: Command CommandID: ReferenceImageXForm Idx: 0 Loc: (0.278906, 0.395) Size: (684, 520) Scale: 1 Rot: 0 Off: (0, 0)
Wait: 8.354s EvType: Command CommandID: ReferenceImageXForm Idx: 0 Loc: (0.278906, 0.395) Size: (161, 119) Scale: 1 Rot: 0 Off: (0, 0)
Wait: 1.659s EvType: Command CommandID: CanvasXForm Scale: 0.0840503 Rot: 0 Off: (537, 307)
Wait: 1.123s EvType: Command CommandID: CanvasXForm Scale: 0.0840503 Rot: 0 Off: (497, 259)
<StrokeEvent>
<StrokeHeader>
<EventPt> Wait: 1.116s Loc: (1054.6, 527.3) Pr: 0.0521997 Ti: 0.489467 Ro: 1.27568 Fw: 1 Bt: 0 Rv: NO Iv: NO </EventPt>
<Recorded> Yes </Recorded>
<RandSeed> 0x000000000, 0x000000000 </RandSeed>
<Smooth> Count: 3
Loc: (1054.6, 527.3) Pr: 0.132196 Ti: 1 Ro: 0 Fw: 1 Bt: 0
Loc: (1086.56, 527.3) Pr: 0.132196 Ti: 1 Ro: 0 Fw: 1 Bt: 0
Loc: (1102.54, 527.3) Pr: 0.132196 Ti: 1 Ro: 0 Fw: 1 Bt: 0
</Smooth>
<PrevA> Loc: (-679.912, 774.652) Pr: 0.135925 Ti: 1 Ro: 0 Fw: 1 Bt: 0 </PrevA>
<PrevB> Loc: (-505.365, 600.105) Pr: 0.174106 Ti: 1 Ro: 0 Fw: 1 Bt: 0 </PrevB>
<OldHd> Loc: (1086.56, 527.3) Pr: 0 Ti: 0.477897 Ro: 1.27511 Fw: 1 Bt: 0 Dr: (-0.919609, -0.392834) Hd: (0.392834, -0.919609) </OldHd>
<NewHd> Loc: (1054.6, 527.3) Pr: 0 Ti: 0.489467 Ro: 1.27568 Fw: 1 Bt: 0 Dr: (-0.99682, -0.0796825) Hd: (0.0796825, -0.99682) </NewHd>
</StrokeHeader>
Wait: 0.000s Loc: (1054.6, 535.29) Pr: 0.0569451 Ti: 0.489467 Ro: 1.27568 Fw: 1 Bt: 0 Rv: NO Iv: NO
Wait: 0.002s Loc: (1054.6, 543.279) Pr: 0.0237271 Ti: 0.489467 Ro: 1.27568 Fw: 1 Bt: 0 Rv: NO Iv: NO
</StrokeEvent>
Customization
Currently, arscript-mode provides a basic set of features optimized for general usage. Future versions may include customizable options based on user feedback.
Contributing
Contributions to arscript-mode are welcome! Whether it’s bug reports, feature suggestions, or code contributions, feel free to reach out or submit pull requests on GitHub.
ROADMAP
TODO review syntactical keyword highlighting based on contents of arscript pdf manual
TODO add text transformation functions to affect arscript and hence ArtRage playback
Alternatives
As far as I can tell this is the first Emacs major mode supporting the arscript format.
